7400432/100ADS-10090

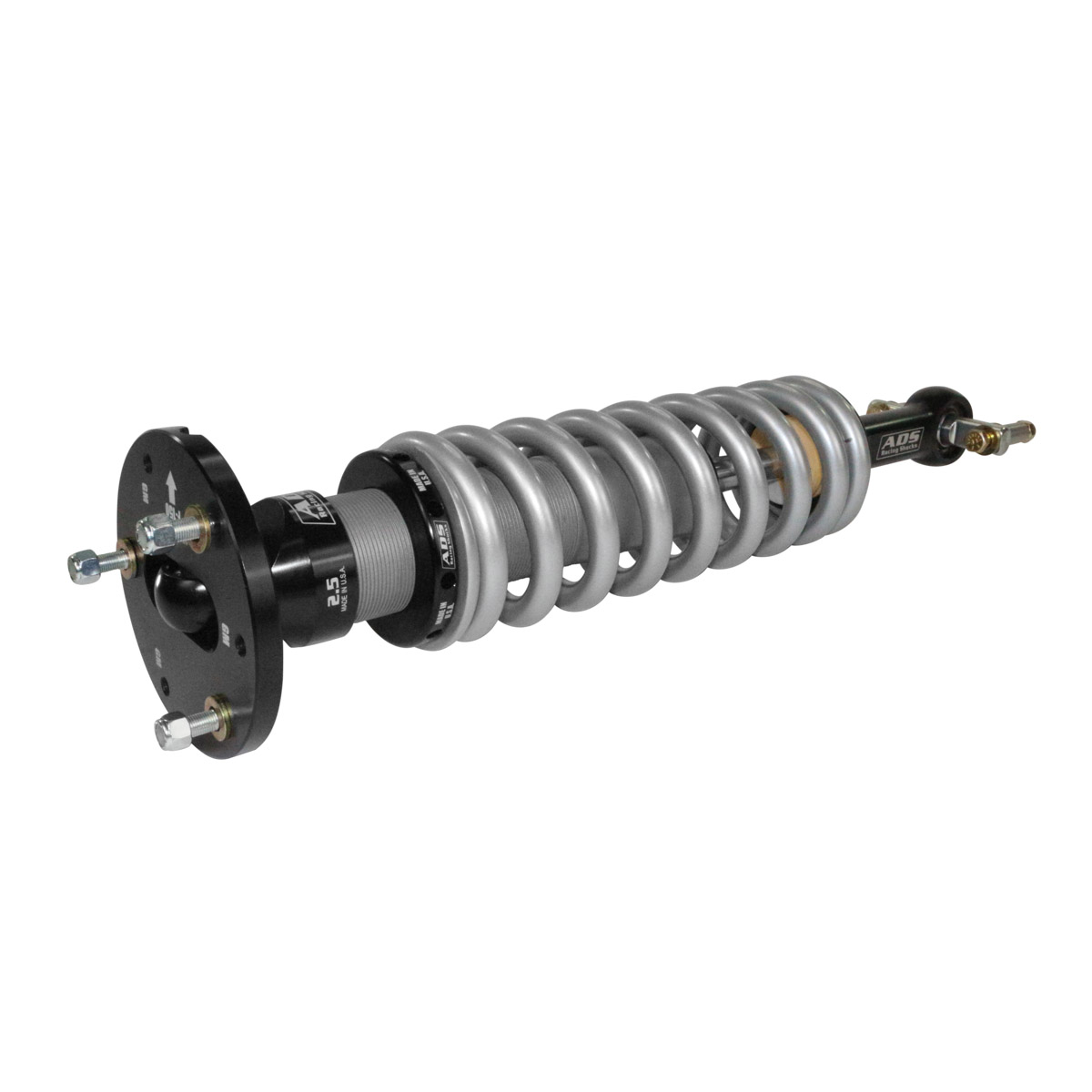

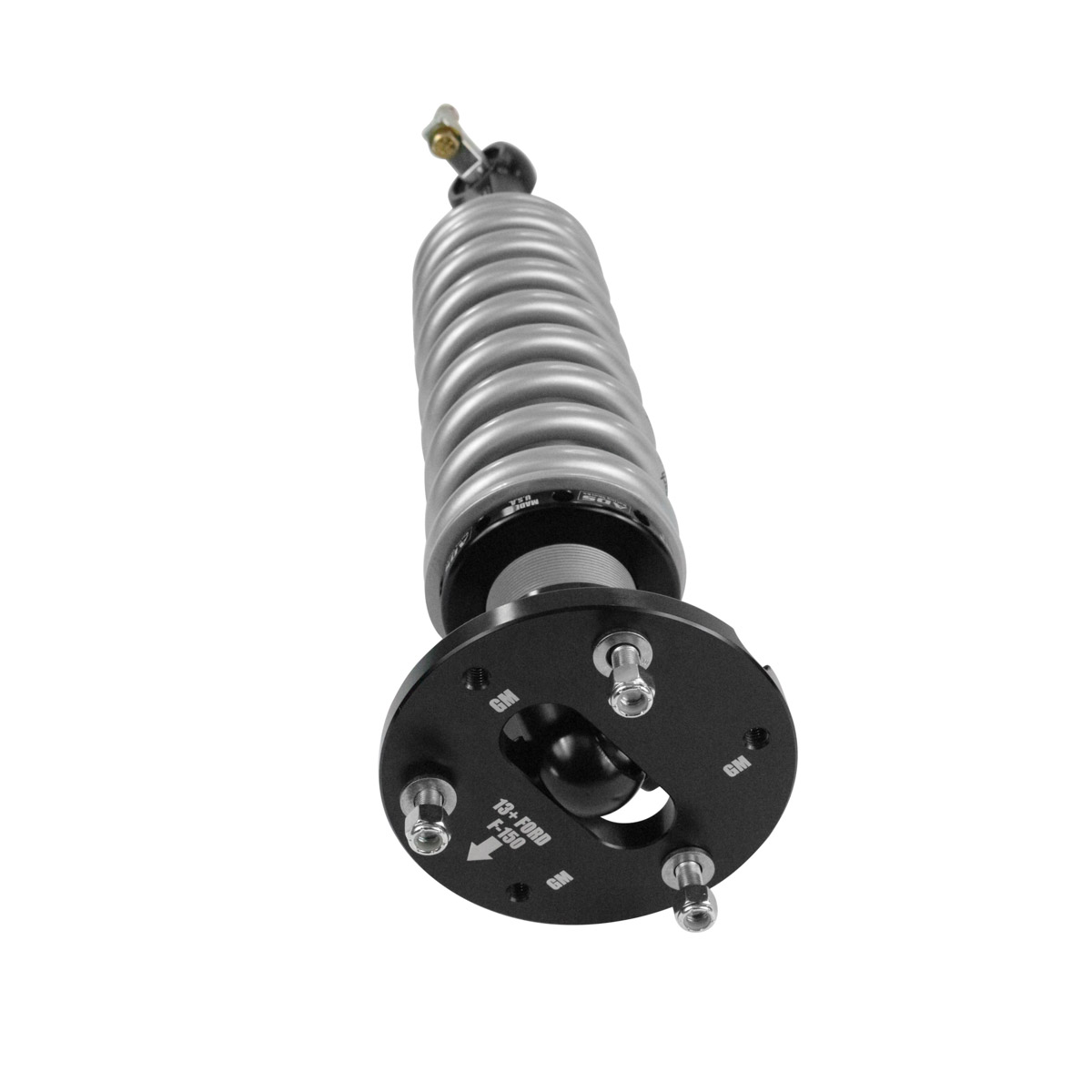

ADS - Mesa 2.5 Series Shocks
- Brand
- ADS Racing Shocks
- Part number
- 100ADS-10090
- SKU
- 100ADS-10090
- Availability
- Available to order
Price฿80,231.66
- +7% VAT
Not sure this part fits? Check with us before ordering
Avoid incorrect part orders by contacting us for verification. Imported parts are non-refundable. For fitment assistance, please provide your vehicle's details: Year, Make, Model, VIN, and any modifications — and mention part 100ADS-10090.
Contact us to double check your VINUpgrade your Jeep Wrangler, Ford F-150, or GM 2500 with our bolt-on, OEM replacement suspension solutions. These premium shock absorbers are designed for maximum durability and performance, featuring a UV-stable ceramic powder-coated steel shock body and black anodized billet aluminum top and bottom caps. Hard-chrome plated steel shock shafts provide superior corrosion resis tance, while spacers machined from 304 stainless steel further enhance durability. Filled with premium full synthetic shock oil, the shock absorber incorporates an internal floating piston (IFP) to ensure consistent damping performance, improved responsiveness, and increased longevity. The large bore 2.50-inch shock body increases fluid capacity, effectively resisting shock fade to boost off-road performance. Fully rebuildable, this shock absorber is the ultimate upgrade for enhancing your vehicle's suspens ion system.
2014-2020 F150, 0-2" Lift, Front, 4WD
References
| Brand | ADS Racing Shocks |
|---|---|
| Category | Newest |
| Part number | 100ADS-10090 |
| Product Code | 7400432 |
Specifications
| Brand | ADS Racing Shocks |
|---|---|
| Emission Code | 6 |
| Quantity | Sold as a pair |
| Mounting Hardware Included | Yes |
| Spring Rate | 600 lb/in |
| Body Diameter | 2.5 (in) |
| Type | Smooth Body |
| Compressed Length | 18 (in) |
| Extended Length | 23.09 (in) |
| Shaft Diameter | 0.875 |
| Body Material | Steel |
| Shaft Material | Hard-chrome plated steel |
| Grade Type | Performance |
| Spring Included | Yes |
| Spring Material | Steel |
| Boot Included | No |
| Gas Charged | Yes |
| Lower Mount Type | T-Bar |
| Upper Mount Type | Mounting Plate |
| Spring Color | Silver |
| Body Color | Silver |
| Body Finish | Ceramic coated |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Includes Bump Stop | No |
| Internal Construction Type | Mono tube |
| Internal Rebound Bumper | No |
| Internal Rebound Spring | No |
| Requires UCA | No |
| Travel Length | 5.09 (in) |
| Valving Type | Progressive |
| Remote Reservoir | No |
| Spring Finish | Powdercoated |
| Spring Rate (lb./in) | 600 |
