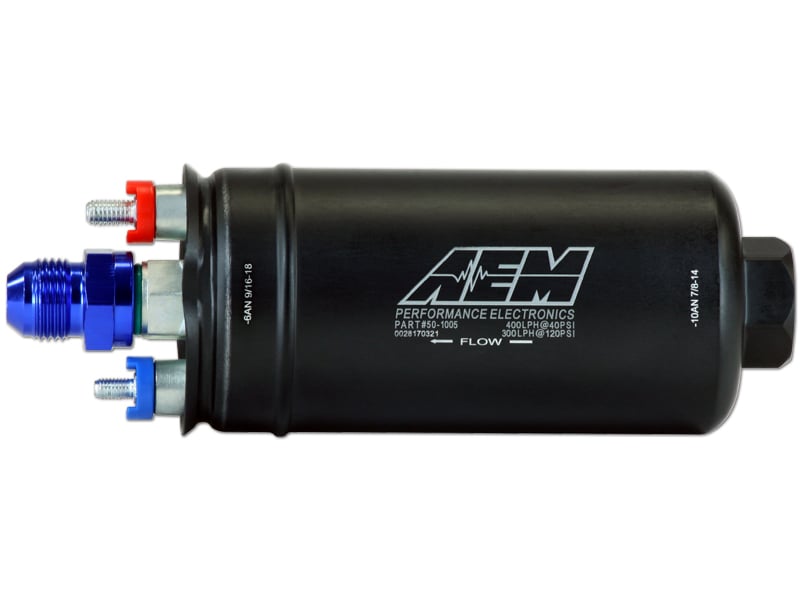

AEM 400LPH (AN) Inline High Flow Fuel Pump

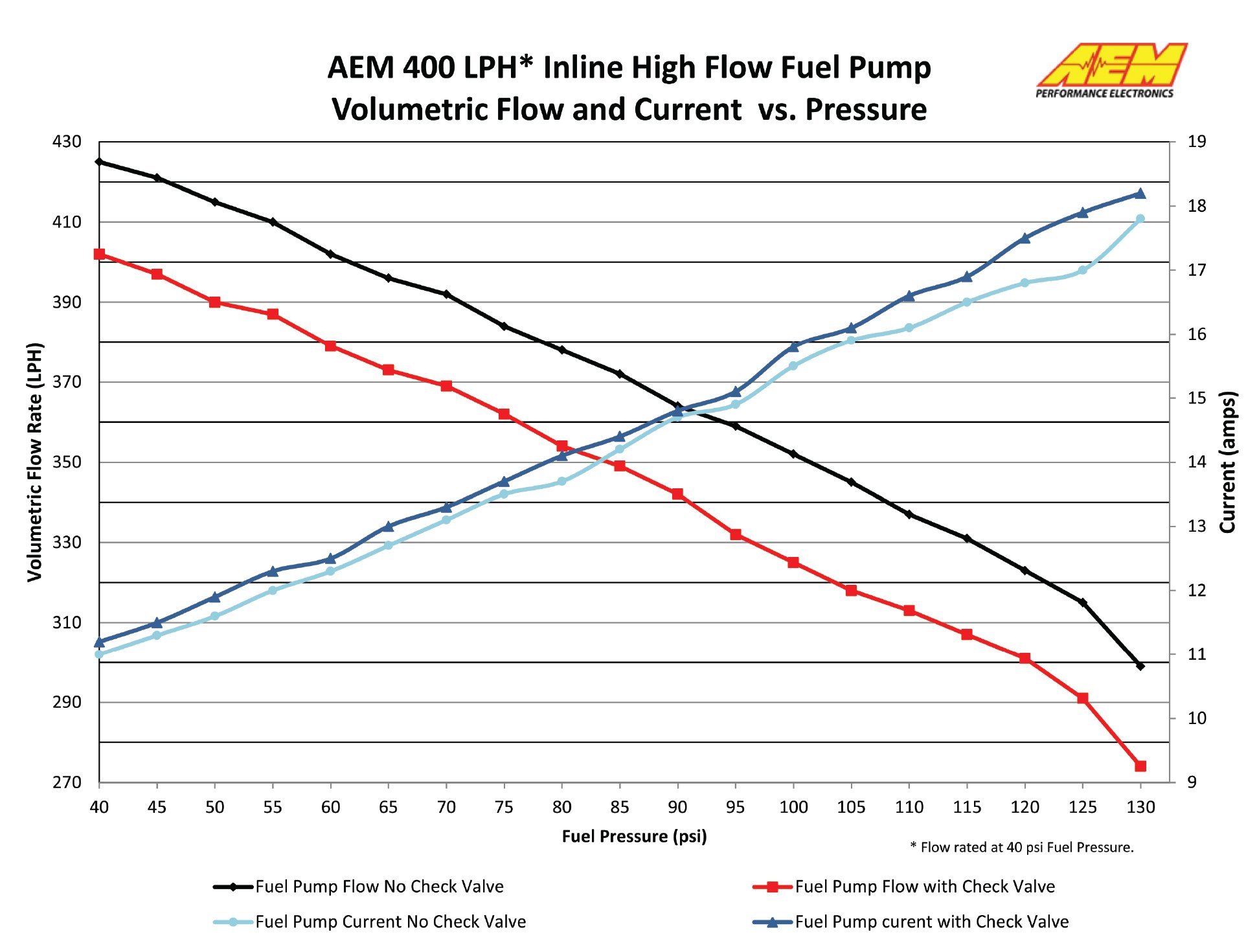

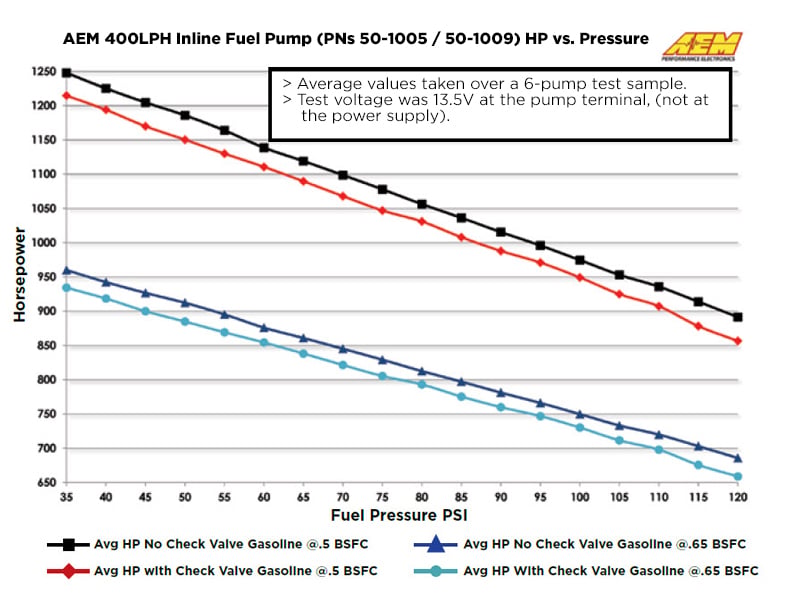

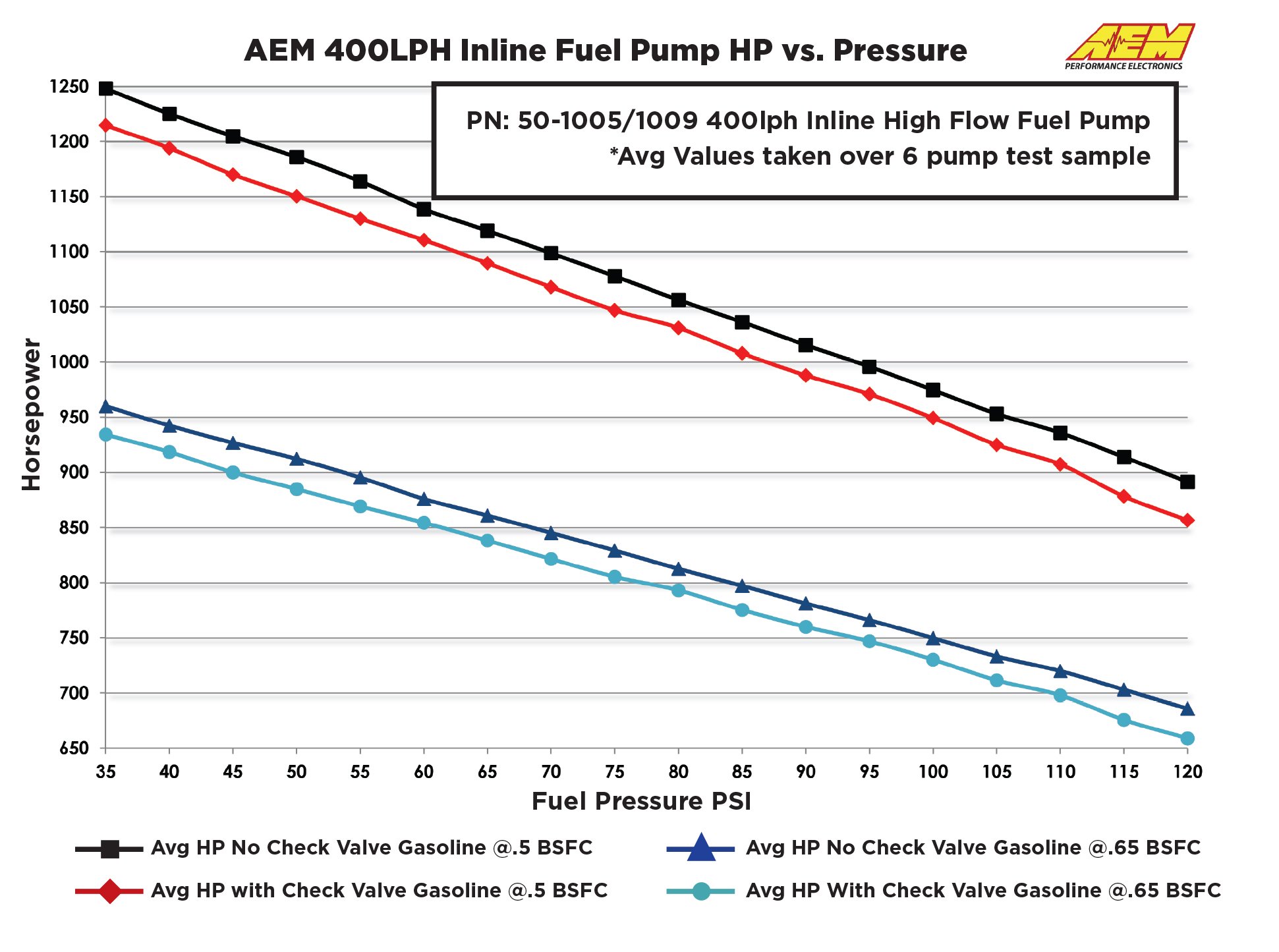

AEM's 400LPH AN Fittings High Flow, High-Pressure Inline Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see part numbers, below). It utilizes the industry standard "044 Style" envelope and -10 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value. AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost.* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs section, below. The AEM 400LPH AN Fittings High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting). A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included. Optional accessories that are sold separately include a -10 ORB fitting inlet pre-filter (for use with in-tank installations), and both -8 and -6 discharge adapters without integral check valves. Accessory fittings are hard anodized. Inlet -10AN - Outlet -6AN
